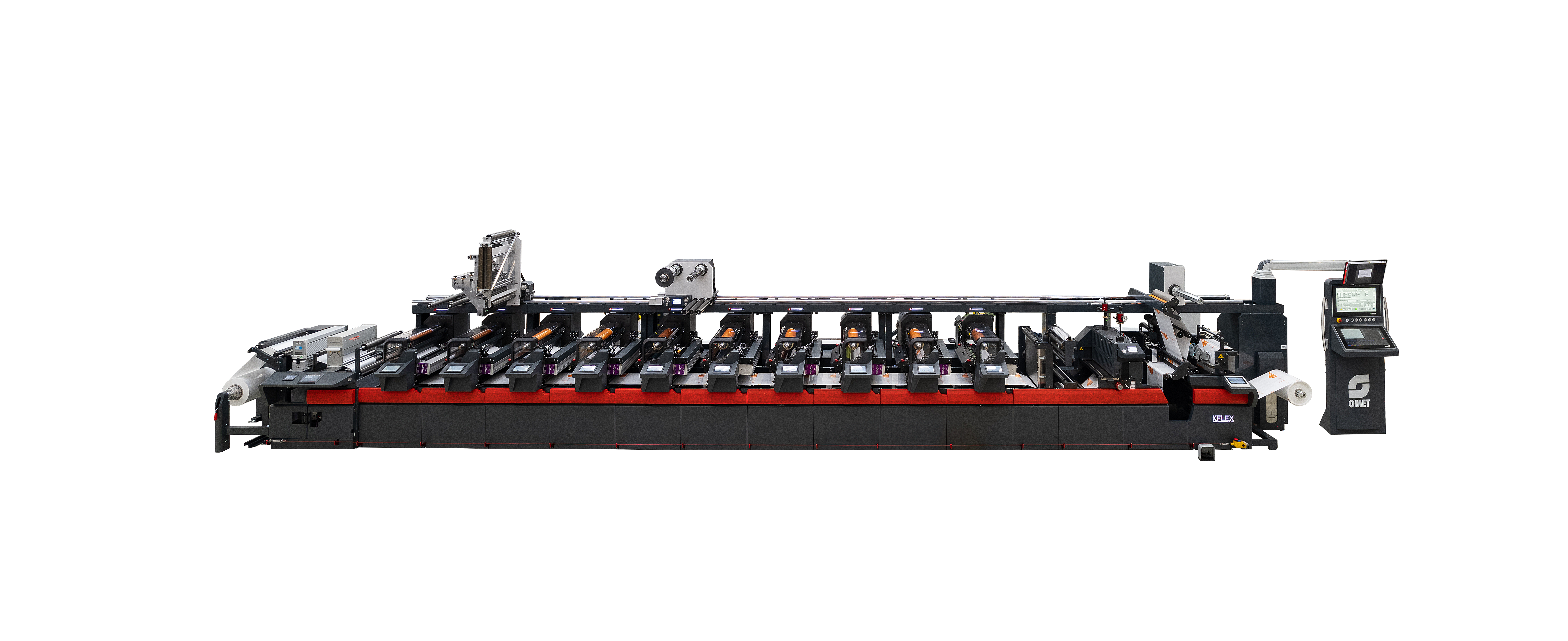

KFlex K6 modular design allows to combine and implement in-line different printing technologies with the maximum flexibility, as well as special finishing applications and converting units, to always get to the final product in one single pass.
The exclusive SWITCH system improves the flexibility of the press configuration enabling the interchangeability between printing and converting units through easy and quick handling operations. This valuable feature allows quick reaction to productive needs as well as process optimization on the entire line.
No matter the complexity or the run lenght, the K6 has always the right converting solution to satisfy any production requirement. Its key strength is the new flexo station, conceived to redefine the way of printing with an automatic process, from start-up to job changeover, setting unmatchable quality standards in label and packaging printing.
The AutoMate Technology automates key machine functions to improve efficiency and safety: automatic guard opening is triggered by integrated sensors, while the Smart HMI and multi‑color operational display provide intuitive control and real‑time status feedback.
| 430 | 530 | |
|---|---|---|
| Max speed | 200 m/min | 200 m/min |
| Unwinding reel diameter | 1000 mm | 1000 mm |
| Rewinder reel diameter | 760 mm - 1000 mm | 760 mm - 1000 mm |
| Web width | 430 mm (16 7/8'') | 530 mm (20 7/8'') |
| Print width | 420 mm (16,5'') | 520 mm (20,5'') |
| Infeed/Outfeed | Servo | Servo |
| Printing transmission | Servo Direct Drive | Servo Direct Drive |
| Printing plates technology | Sleeve | Sleeve |
| Automatic pre-register print/die cutting | 360° | 360° |
| Automatic register control | Integrated | Integrated |
| Automatic CD and MD register system | Vision System | Vision System |
| AVAILABLE PRINTING TECHNOLOGIES | ||
| Flexo UV/UV LED | (10")12"-25" | (10")12"-25" |
| Flexo Water Base | (10")12"-25" | (10")12"-25" |
| Offset (Sleeve) | 14"-25" | 14"-25" |
| Rotary silk-screen | 12"-25" | 16"-25" |
| Digital inkjet | √ | √ |
| AVAILABLE DIE-CUTTING SYSTEMS | ||
| ECDC Easy-Change Die Cut | 12"-24" | 16"-24" |
| Cassette-style die-cutting station | 12"-25" | 16"-25" |
| SWING Semi-Rotary Die-Cut | 10"-24" | 10"-24" |
